Funtech - INNO3D GeForce RTX 5060 Ti Twin X2 OC 16GB (506T2-16D7X-191073N)

Nahajate se: Funtech > Vse kategorije > Računalništvo > Komponente > Grafične kartice > NVIDIA GeForce > RTX 5060 Ti 16GB

Predstavitev artikla

Dodaj v seznam želja >>

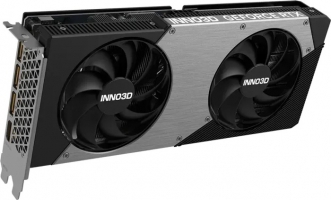

INNO3D GeForce RTX 5060 Ti Twin X2 OC 16GB (506T2-16D7X-191073N)

Naša cena: 1.336,72 €

Dodaj v košarico

Že od 35.60 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

1.650,27 €

Spletna cena:

1.336,72 €

Vaš prihranek:

Popust 19,00% (313,55 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x8886307700681

Naša koda:

VGAII638

Splošni opis:

Model

NVIDIA GeForce RTX 5060 Ti

Memory

16GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s

clock Base

2235MHz

clock Boost

2602MHz

overclock

+30MHz Boost

Cooling

2x Axial-fan (88mm)

TDP/TGP

180W (NVIDIA)

AI-computing power (INT8)

>380 TOPS (NVIDIA), 759 TOPS (INNO3D)

GPU-Computing power

23.98 TFLOPS (FP16), 23.98 TFLOPS (FP32), 0.37 TFLOPS (FP64)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16 (x8)

Special features

AI-acceleration, Backplate, NVIDIA GeForce SFF-Ready

total height

Dual Slot

Dimensions

250x116x41mm (LxWxH)

Type

PCIe card (full height)

PCI slot bracket

full height

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB206-300-A1

Chip-Configuration

36SM (4608SP / 144TMU / 48ROP), 36 RT Cores, 144 Tensor Cores, 32MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

181mm², monolithisch, 21.9 Mio. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 380 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Processor

CUDA cores

4608

Graphics processor family

NVIDIA

Processor frequency

2235 MHz

Graphics processor

GeForce RTX 5060 Ti

Processor boost clock speed

2602 MHz

Maximum displays per videocard

Maximum resolution

7680 x 4320 pixels

CUDA

Yes

Parallel processing technology support

Not supported

Memory

Number of pipelines

Discrete graphics card memory

16 GB

Graphics card memory type

GDDR7

Memory bus

128 bit

Memory bandwidth (max)

448 GB/s

Data transfer rate

28 Gbit/s

Design

Number of fans

2 fan(s)

Product colour

Black , Grey

Number of slots

SFF ready

Yes

Fan diameter

8.8 cm

Cooling type

Active

Power

Supplementary power connectors

1x 8-pin

Minimum system power supply

650 W

Weight & dimensions

Length

250 mm

Height

116 mm

Depth

41 mm

System requirements

Other operating systems supported

FreeBSD

Linux operating systems supported

Yes

Windows operating systems supported

Windows 10 , Windows 11

Performance

Virtual Reality (VR) ready

Yes

NVIDIA Ansel

Yes

NVIDIA G-SYNC

Yes

DirectX version

12 Ultimate

HDCP

Yes

Dual Link DVI

OpenGL version

4.6

TV tuner integrated

HDCP version

2.3

Overclocked (OC) edition

Yes

Packaging data

Package type

Box

Ports & interfaces

DisplayPorts quantity

HDMI ports quantity

HDMI version

2.1b

DisplayPort version

2.1b

Interface type

PCI Express 5.0
