Funtech - MSI GeForce RTX 5060 Ti VENTUS 3X OC 16GB (V812-072R)

Nahajate se: Funtech > Vse kategorije > Računalništvo > Komponente > Grafične kartice > NVIDIA GeForce > RTX 5060 Ti 16GB

Predstavitev artikla

Dodaj v seznam želja >>

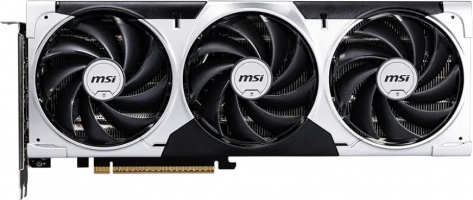

MSI GeForce RTX 5060 Ti VENTUS 3X OC 16GB (V812-072R)

Naša cena: 535,57 €

Dodaj v košarico

Že od 14.27 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

661,19 €

Spletna cena:

535,57 €

Vaš prihranek:

Popust 19,00% (125,62 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x4711377337618

Naša koda:

VGAMM522

Splošni opis:

Model

NVIDIA GeForce RTX 5060 Ti

Memory

16GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s

clock Base

2407MHz (Standard-Profile), 2407MHz (OC-Profile)

clock Boost

2602MHz (Standard-Profile), 2617MHz (OC-Profile)

overclock

+45MHz Boost (OC-Profile), +30MHz Boost (Standard-Profile)

Cooling

3x Axial-fan (90mm) with 0dB-zero-fan-mode

TDP/TGP

180W (NVIDIA), max. 180W (MSI)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16 (x8)

Special features

AI-acceleration, Taktprofile (Default Mode/extreme Performance), Backplate, NVIDIA GeForce SFF-Ready

total height

Dual Slot

Dimensions

306x121x44mm (LxWxH), Weight: 860g

Type

PCIe card (full height)

PCI slot bracket

full height

AI-computing power (dense)

379.5 TOPS (FP4), 189.75 TOPS (FP8), 94.87 TOPS (FP16)

AI-computing power (sparse)

759 TOPS (FP4), 379.5 TOPS (FP8), 189.74 TOPS (FP16)

GPU-Computing power

24.12 TFLOPS (FP16), 24.12 TFLOPS (FP32), 0.38 TFLOPS (FP64)

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB206-300-A1

Chip-Configuration

36SM (4608SP / 144TMU / 48ROP), 36 RT Cores, 144 Tensor Cores, 32MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

181mm², monolithisch, 21.9 Mio. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 94.87 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Processor

Maximum resolution

7680 x 4320 pixels

Graphics processor family

NVIDIA

Graphics processor

GeForce RTX 5060 Ti

CUDA cores

4608

Maximum displays per videocard

CUDA

Yes

Processor boost clock speed

2602 MHz

Memory

Graphics card memory type

GDDR7

Data transfer rate

28 Gbit/s

Discrete graphics card memory

16 GB

Memory bus

128 bit

Design

Product colour

Black , Grey

Form factor

Full-Height/Half-Length (FH/HL)

Number of fans

3 fan(s)

Cooling type

Active

Power

Supplementary power connectors

1x 16-pin

Power consumption (typical)

180 W

Minimum system power supply

600 W

Weight & dimensions

Weight

860 g

Depth

44 mm

Height

121 mm

Length

306 mm

Performance

Overclocked (OC) edition

Yes

DirectX version

12 Ultimate

Dual Link DVI

TV tuner integrated

OpenGL version

4.6

NVIDIA G-SYNC

Yes

Packaging data

Package weight

1.23 kg

Package type

Box

Packaging content

Cables included

Power

Ports & interfaces

DisplayPort version

2.1b

DisplayPorts quantity

HDMI ports quantity

Interface type

PCI Express x16 5.0

HDMI version

2.1b

Logistics data

Products per shipping (inner) case

1 pc(s)
