Funtech - INNO3D GeForce RTX 5060 Ti X3 OC 8GB (N506T3-08D7X-193075L)

Nahajate se: Funtech > Vse kategorije > Računalništvo > Komponente > Grafične kartice > NVIDIA GeForce > RTX 5060 Ti 8GB

Predstavitev artikla

Dodaj v seznam želja >>

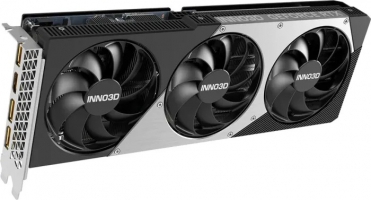

INNO3D GeForce RTX 5060 Ti X3 OC 8GB (N506T3-08D7X-193075L)

Naša cena: 434,78 €

Dodaj v košarico

Že od 11.47 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

536,77 €

Spletna cena:

434,78 €

Vaš prihranek:

Popust 19,00% (101,99 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x8886307700766

Naša koda:

VGAII632

Splošni opis:

Model

NVIDIA GeForce RTX 5060 Ti

Memory

8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s

clock Base

2325MHz

clock Boost

2602MHz

overclock

+30MHz Boost

Cooling

2x Axial-fan (88mm)

TDP/TGP

180W (NVIDIA)

AI-computing power (INT8)

>380 TOPS (NVIDIA), 759 TOPS (INNO3D)

GPU-Computing power

23.98 TFLOPS (FP16), 23.98 TFLOPS (FP32), 0.37 TFLOPS (FP64)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16 (x8)

Special features

AI-acceleration, Backplate, NVIDIA GeForce SFF-Ready

total height

Dual Slot

Dimensions

300x116x41mm (LxWxH)

Type

PCIe card (full height)

PCI slot bracket

full height

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB206-300-A1

Chip-Configuration

36SM (4608SP / 144TMU / 48ROP), 36 RT Cores, 144 Tensor Cores, 32MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

181mm², monolithisch, 21.9 Mio. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 380 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Processor

Processor boost clock speed

2602 MHz

Graphics processor family

NVIDIA

Maximum resolution

7680 x 4320 pixels

CUDA cores

4608

CUDA

Yes

Parallel processing technology support

Not supported

Graphics processor

GeForce RTX 5060 Ti

Processor frequency

2407 MHz

Maximum displays per videocard

Memory

Memory bus

128 bit

Graphics card memory type

GDDR7

Discrete graphics card memory

8 GB

Memory bandwidth (max)

448 GB/s

Number of pipelines

Data transfer rate

28 Gbit/s

Design

Product colour

Black , Grey

Number of slots

Cooling type

Active

Fan diameter

8.8 cm

Number of fans

3 fan(s)

SFF ready

Yes

Power

Supplementary power connectors

1x 8-pin

Minimum system power supply

650 W

Weight & dimensions

Length

300 mm

Depth

41 mm

Height

116 mm

System requirements

Windows operating systems supported

Windows 10 , Windows 11

Other operating systems supported

FreeBSD

Linux operating systems supported

Yes

Performance

HDCP

Yes

NVIDIA G-SYNC

Yes

TV tuner integrated

Dual Link DVI

OpenGL version

4.6

DirectX version

12 Ultimate

Virtual Reality (VR) ready

Yes

HDCP version

2.3

NVIDIA Ansel

Yes

Overclocked (OC) edition

Yes

Packaging data

Package type

Box

Ports & interfaces

Interface type

PCI Express 5.0

DisplayPort version

2.1b

DisplayPorts quantity

HDMI ports quantity

HDMI version

2.1b
