Splošni opis:

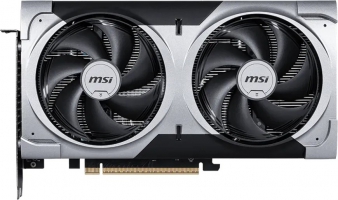

ModelNVIDIA GeForce RTX 5060 Ti
Memory8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s
clock Base2407MHz (Standard-Profile), 2407MHz (OC-Profile)
clock Boost2572MHz (Standard-Profile), 2587MHz (OC-Profile)
overclock+15MHz Boost (OC-Profile)
Cooling2x Axial-fan (90mm) with 0dB-zero-fan-mode
TDP/TGP180W (NVIDIA), max. 180W (MSI)
Power connections1x 8-Pin PCIe
Connectors1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
InterfacePCIe 5.0 x16 (x8)
Special featuresAI-acceleration, Taktprofile (Default Mode/extreme Performance), Backplate, NVIDIA GeForce SFF-Ready
total heightDual Slot
Dimensions227x127x41mm (LxWxH), Weight: 600g
TypePCIe card (full height)
PCI slot bracketfull height
AI-computing power (dense)379.5 TOPS (FP4), 189.75 TOPS (FP8), 94.87 TOPS (FP16)
AI-computing power (sparse)759 TOPS (FP4), 379.5 TOPS (FP8), 189.74 TOPS (FP16)
GPU-Computing power23.84 TFLOPS (FP16), 23.84 TFLOPS (FP32), 0.37 TFLOPS (FP64)
Chip-data
Chip-ArchitectureBlackwell (from 2025/Q1)
Chip-titleGB206-300-A1
Chip-Configuration36SM (4608SP / 144TMU / 48ROP), 36 RT Cores, 144 Tensor Cores, 32MiB L2 cache
Chip-Manufacturing ProcessTSMC 5nm "NVIDIA 4N"
Chip size181mm², monolithisch, 21.9 Mio. Transistoren
Chip-functionsRaytracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 94.87 TOPS), HDCP 2.3
API-supportDirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
Transcoding-Engine1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)
encodingAV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
decodingAV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
