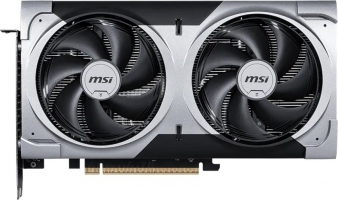

MSI GeForce RTX 5060 Ti VENTUS 2X OC 8GB (V536-001R)

Naša cena: 435,82 €

Dodaj v košarico

Že od 11.50 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

538,05 €

Spletna cena:

435,82 €

Vaš prihranek:

Popust 19,00% (102,23 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x4711377338868

Naša koda:

VGAMM523

Splošni opis:

Model

NVIDIA GeForce RTX 5060 Ti

Memory

8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s

clock Base

2407MHz (Standard-Profile), 2407MHz (OC-Profile)

clock Boost

2602MHz (Standard-Profile), 2617MHz (OC-Profile)

overclock

+45MHz Boost (OC-Profile), +30MHz Boost (Standard-Profile)

Cooling

2x Axial-fan (90mm) with 0dB-zero-fan-mode

TDP/TGP

180W (NVIDIA), max. 180W (MSI)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16 (x8)

Special features

AI-acceleration, Taktprofile (Default Mode/extreme Performance), Backplate, NVIDIA GeForce SFF-Ready

total height

Dual Slot

Dimensions

227x127x41mm (LxWxH), Weight: 600g

Type

PCIe card (full height)

PCI slot bracket

full height

AI-computing power (dense)

379.5 TOPS (FP4), 189.75 TOPS (FP8), 94.87 TOPS (FP16)

AI-computing power (sparse)

759 TOPS (FP4), 379.5 TOPS (FP8), 189.74 TOPS (FP16)

GPU-Computing power

24.12 TFLOPS (FP16), 24.12 TFLOPS (FP32), 0.38 TFLOPS (FP64)

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB206-300-A1

Chip-Configuration

36SM (4608SP / 144TMU / 48ROP), 36 RT Cores, 144 Tensor Cores, 32MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

181mm², monolithisch, 21.9 Mio. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 94.87 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Processor

Processor boost clock speed

2602 MHz

Maximum resolution

7680 x 4320 pixels

Maximum displays per videocard

CUDA cores

4608

Graphics processor family

NVIDIA

CUDA

Yes

Graphics processor

GeForce RTX 5060 Ti

Memory

Discrete graphics card memory

8 GB

Memory bus

128 bit

Data transfer rate

28 Gbit/s

Graphics card memory type

GDDR7

Design

Cooling type

Active

Form factor

Full-Height/Half-Length (FH/HL)

Number of fans

2 fan(s)

Product colour

Silver

Power

Power consumption (typical)

180 W

Supplementary power connectors

1x 16-pin

Minimum system power supply

600 W

Weight & dimensions

Weight

573 g

Length

227 mm

Depth

41 mm

Height

127 mm

Performance

Overclocked (OC) edition

Yes

Dual Link DVI

NVIDIA G-SYNC

Yes

OpenGL version

4.6

DirectX version

12 Ultimate

TV tuner integrated

Packaging data

Package weight

834 g

Package type

Box

Packaging content

Cables included

Power

Ports & interfaces

DisplayPort version

2.1b

HDMI version

2.1b

Interface type

PCI Express x16 5.0

HDMI ports quantity

DisplayPorts quantity

Logistics data

Products per shipping (inner) case

1 pc(s)

Priročniki:

Product Brochure
