Predstavitev artikla

Dodaj v seznam želja >>

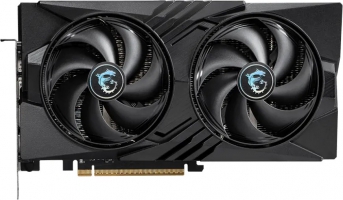

MSI GeForce RTX 5060 Gaming OC 8GB (V537-005R)

Naša cena: 362,32 €

Dodaj v košarico

Že od 12.29 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

447,30 €

Spletna cena:

362,32 €

Vaš prihranek:

Popust 19,00% (84,98 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x4711377342544

Naša koda:

VGAMM524

Splošni opis:

Model

NVIDIA GeForce RTX 5060

Memory

8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s

clock Base

2280MHz (Standard-Profile)

clock Boost

2625MHz (Standard-Profile), 2640MHz (OC-Profile)

overclock

+143MHz Boost (OC-Profile), +128MHz Boost (Standard-Profile)

Cooling

2x Axial-fan (100mm) with 0dB-zero-fan-mode

TDP/TGP

145W (NVIDIA), max. 155W (MSI)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16 (x8)

Special features

AI-acceleration, Taktprofile (extreme Performance), LED lighting (RGB), Backplate, NVIDIA GeForce SFF-Ready, Graphics Cards-Mounting

total height

Triple Slot

Dimensions

248x135x41mm (LxWxH), Weight: 649g

Type

PCIe card (full height)

PCI slot bracket

full height

AI-computing power (dense)

307 TOPS (FP4), 153.5 TOPS (FP8), 76.75 TOPS (FP16)

AI-computing power (sparse)

614 TOPS (FP4), 307 TOPS (FP8), 153.5 TOPS (FP16)

GPU-Computing power

20.28 TFLOPS (FP16), 20.28 TFLOPS (FP32), 0.32 TFLOPS (FP64)

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB206-250-A1

Chip-Configuration

30SM (3840SP / 120TMU / 48ROP), 30 RT Cores, 120 Tensor Cores, 32MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

181mm², monolithisch, 21.9 Mio. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 48 TFLOPS), NVIDIA Tensor (5th Gen, 76.75 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Processor

CUDA

Yes

CUDA cores

3840

Graphics processor family

NVIDIA

Maximum resolution

7680 x 4320 pixels

Graphics processor

GeForce RTX 5060

Maximum displays per videocard

Processor boost clock speed

2640 MHz

Memory

Discrete graphics card memory

8 GB

Data transfer rate

28 Gbit/s

Graphics card memory type

GDDR7

Memory bus

128 bit

Design

Product colour

Black

Number of fans

2 fan(s)

Cooling type

Active

Power

Minimum system power supply

600 W

Supplementary power connectors

1x 8-pin

Power consumption (typical)

155 W

Weight & dimensions

Length

248 mm

Weight

649 g

Height

41 mm

Depth

135 mm

Performance

OpenGL version

4.6

Dual Link DVI

TV tuner integrated

NVIDIA G-SYNC

Yes

DirectX version

12 Ultimate

Overclocked (OC) edition

Yes

Packaging data

Package type

Box

Packaging content

Cables included

Power

Ports & interfaces

Interface type

PCI Express x16 5.0

HDMI ports quantity

DisplayPort version

2.1b

DisplayPorts quantity

HDMI version

2.1b

Logistics data

Products per shipping (inner) case

1 pc(s)
