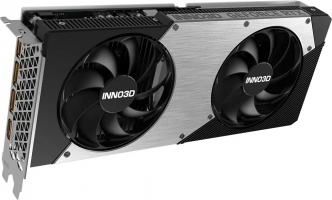

Inno3D GeForce RTX 5060 Twin X2 OC 8GB (N50602-08D7X-195070N)

Naša cena: 384,47 €

Dodaj v košarico

Že od 10.15 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

474,65 €

Spletna cena:

384,47 €

Vaš prihranek:

Popust 19,00% (90,18 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x8886307701152

Naša koda:

VGAII630

Splošni opis:

Model

NVIDIA GeForce RTX 5060

Memory

8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s

clock Base

2280MHz

clock Boost

2527MHz

overclock

+30MHz Boost

Cooling

2x Axial-fan (88mm)

TDP/TGP

145W (NVIDIA)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16 (x8)

Special features

AI-acceleration, Backplate, NVIDIA GeForce SFF-Ready

total height

Dual Slot

Dimensions

250x116x41mm (LxWxH)

Type

PCIe card (full height)

PCI slot bracket

full height

AI-computing power (dense)

307 TOPS (FP4), 153.5 TOPS (FP8), 76.75 TOPS (FP16)

AI-computing power (sparse)

614 TOPS (FP4), 307 TOPS (FP8), 153.5 TOPS (FP16)

GPU-Computing power

19.41 TFLOPS (FP16), 19.41 TFLOPS (FP32), 0.3 TFLOPS (FP64)

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB206-250-A1

Chip-Configuration

30SM (3840SP / 120TMU / 48ROP), 30 RT Cores, 120 Tensor Cores, 32MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

181mm², monolithisch, 21.9 Mio. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 48 TFLOPS), NVIDIA Tensor (5th Gen, 76.75 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Processor

Processor frequency

2280 MHz

Graphics processor family

NVIDIA

Maximum resolution

7680 x 4320 pixels

CUDA cores

3840

Processor boost clock speed

2527 MHz

Maximum displays per videocard

Graphics processor

GeForce RTX 5060

CUDA

Yes

Parallel processing technology support

Not supported

Memory

Memory bandwidth (max)

448 GB/s

Data transfer rate

28 Gbit/s

Number of pipelines

Memory bus

128 bit

Graphics card memory type

GDDR7

Discrete graphics card memory

8 GB

Design

Product colour

Black , Grey

Cooling type

Active

Number of fans

2 fan(s)

Fan diameter

8.8 cm

Number of slots

SFF ready

Yes

Power

Supplementary power connectors

1x 8-pin

Minimum system power supply

550 W

Weight & dimensions

Height

116 mm

Length

250 mm

Depth

41 mm

System requirements

Other operating systems supported

FreeBSD

Windows operating systems supported

Windows 10 , Windows 11

Linux operating systems supported

Yes

Performance

HDCP version

2.3

HDCP

Yes

TV tuner integrated

Overclocked (OC) edition

Yes

NVIDIA G-SYNC

Yes

NVIDIA Ansel

Yes

OpenGL version

4.6

DirectX version

12 Ultimate

Dual Link DVI

Packaging data

Package type

Box

Ports & interfaces

DisplayPorts quantity

Interface type

PCI Express 5.0

HDMI ports quantity

DisplayPort version

2.1b

HDMI version

2.1b
