Funtech - ZOTAC RTX 5060 Twin Edge 8GB GDDR6 (ZT-B50600E-10M)

Nahajate se: Funtech > Vse kategorije > Računalništvo > Komponente > Grafične kartice > NVIDIA GeForce > RTX 5060

Predstavitev artikla

Dodaj v seznam želja >>

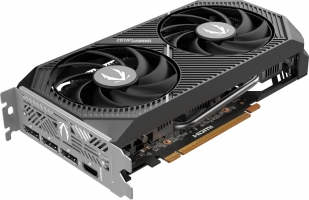

ZOTAC RTX 5060 Twin Edge 8GB GDDR6 (ZT-B50600E-10M)

Naša cena: 369,95 €

Dodaj v košarico

Že od 12.59 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

456,73 €

Spletna cena:

369,95 €

Vaš prihranek:

Popust 19,00% (86,78 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x8886307701534

Naša koda:

VGAZO703

Splošni opis:

Model

NVIDIA GeForce RTX 5060

Memory

8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s

clock Base

2280MHz

clock Boost

2497MHz

overclock

Cooling

2x Axial-fan (2 x90mm) with 0dB-zero-fan-mode

TDP/TGP

145W (NVIDIA), max. 145W (Zotac)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16 (x8)

Special features

AI-acceleration, Backplate, NVIDIA GeForce SFF-Ready

total height

Dual Slot

Dimensions

220.5x120.25x41.6mm (LxWxH)

Type

PCIe card (full height)

PCI slot bracket

full height

AI-computing power (dense)

307 TOPS (FP4), 153.5 TOPS (FP8), 76.75 TOPS (FP16)

AI-computing power (sparse)

614 TOPS (FP4), 307 TOPS (FP8), 153.5 TOPS (FP16)

GPU-Computing power

19.18 TFLOPS (FP16), 19.18 TFLOPS (FP32), 0.3 TFLOPS (FP64)

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB206-250-A1

Chip-Configuration

30SM (3840SP / 120TMU / 48ROP), 30 RT Cores, 120 Tensor Cores, 32MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

181mm², monolithisch, 21.9 Mio. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 48 TFLOPS), NVIDIA Tensor (5th Gen, 76.75 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Vodilo

PCIe
