Splošni opis:

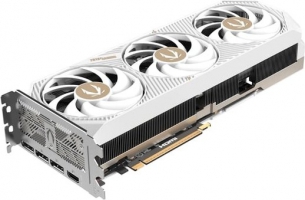

ModelNVIDIA GeForce RTX 5070 Ti
Memory16GB GDDR7, 256bit, 28Gbps, 1750MHz, 896GB/s
clock Base2300MHz
clock Boost2482MHz
overclock+32MHz Boost
Cooling3x Axial-fan (3 x90mm) with 0dB-zero-fan-mode
TDP/TGP300W (NVIDIA), max. 300W (Zotac)
Power connections1x 12V-2x6 (via adapter: 2x 8-Pin PCIe)
Connectors1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
InterfacePCIe 5.0 x16
Special featuresAI-acceleration, LED lighting (RGB), Backplate, white Build compatible (white colouring), Dual BIOS switch, Graphics Cards-Mounting
total heightTriple Slot (2.5 Slots)
Dimensions303.5x115.8x55.7mm (LxWxH)
TypePCIe card (full height)
PCI slot bracketfull height
AI-computing power (dense)703 TOPS (FP4), 351.5 TOPS (FP8), 175.75 TOPS (FP16)
AI-computing power (sparse)1406 TOPS (FP4), 703 TOPS (FP8), 351.5 TOPS (FP16)
GPU-Computing power44.48 TFLOPS (FP16), 44.48 TFLOPS (FP32), 0.69 TFLOPS (FP64)
Chip-data
Chip-ArchitectureBlackwell (from 2025/Q1)
Chip-titleGB203-300
Chip-Configuration70SM (8960SP / 280TMU / 96ROP), 70 RT Cores, 280 Tensor Cores, 48MiB L2 cache
Chip-Manufacturing ProcessTSMC 5nm "NVIDIA 4N"
Chip size378mm², monolithisch, 45.6 Mrd. Transistoren
Chip-functionsRaytracing (4th Gen NVIDIA RTX, 133 TFLOPS), NVIDIA Tensor (5th Gen, 175.75 TOPS), HDCP 2.3
API-supportDirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
Transcoding-Engine2x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)
encodingAV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
decodingAV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
