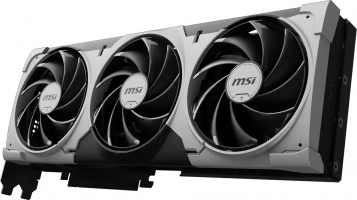

MSI RTX 5070 Ventus 3X OC 12GB GDDR7 (V532-001R)

Naša cena: 751,34 €

Dodaj v košarico

Že od 20.02 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

927,58 €

Spletna cena:

751,34 €

Vaš prihranek:

Popust 19,00% (176,24 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x4711377308281

Naša koda:

VGAMM515

Splošni opis:

Model

NVIDIA GeForce RTX 5070

Memory

12GB GDDR7, 192bit, 28Gbps, 1750MHz, 672GB/s

clock Base

2116MHz (Standard-Profile)

clock Boost

2542MHz (Standard-Profile), 2557MHz (OC-Profile)

overclock

+47MHz Boost (OC-Profile), +32MHz Boost (Standard-Profile)

Cooling

3x Axial-fan (90mm) with 0dB-zero-fan-mode

TDP/TGP

250W (NVIDIA), max. 250W (MSI)

Power connections

1x 12V-2x6 (via adapter: 2x 8-Pin PCIe)

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16

Special features

AI-acceleration, Taktprofile, Backplate, NVIDIA GeForce SFF-Ready

total height

Triple Slot

Dimensions

302x121x49mm (LxWxH)

Type

PCIe card (full height)

PCI slot bracket

full height

AI-computing power (dense)

494 TOPS (FP4), 247 TOPS (FP8), 123.5 TOPS (FP16)

AI-computing power (sparse)

988 TOPS (FP4), 494 TOPS (FP8), 247 TOPS (FP16)

GPU-Computing power

31.42 TFLOPS (FP16), 31.42 TFLOPS (FP32), 0.49 TFLOPS (FP64)

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB205-300

Chip-Configuration

48SM (6144SP / 192TMU / 80ROP), 48 RT Cores, 192 Tensor Cores, 48MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

263mm², monolithisch, 31 Mrd. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 94 TFLOPS), NVIDIA Tensor (5th Gen, 123.5 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Processor

Graphics processor

GeForce RTX 5070

CUDA cores

6144

Graphics processor family

NVIDIA

Maximum displays per videocard

Maximum resolution

7680 x 4320 pixels

CUDA

Yes

Processor boost clock speed

2542 MHz

Memory

Graphics card memory type

GDDR7

Memory bandwidth (max)

28 GB/s

Memory bus

192 bit

Discrete graphics card memory

12 GB

Design

Product colour

Black

Form factor

Full-Height/Half-Length (FH/HL)

Cooling type

Active

Cooling technology

MSI TORX FAN 5.0

Number of fans

3 fan(s)

Power

Supplementary power connectors

1x 16-pin

Power consumption (typical)

250 W

Minimum system power supply

650 W

Weight & dimensions

Length

302 mm

Height

121 mm

Weight

1 kg

Depth

49 mm

Performance

OpenGL version

4.6

TV tuner integrated

NVIDIA G-SYNC

Yes

DirectX version

12 Ultimate

Dual Link DVI

Overclocked (OC) edition

Yes

Packaging data

Package weight

1.44 kg

Package type

Box

Ports & interfaces

HDMI ports quantity

Interface type

PCI Express x16 5.0

HDMI version

2.1b

DisplayPort version

2.1b

DisplayPorts quantity

Logistics data

Products per shipping (inner) case

1 pc(s)
