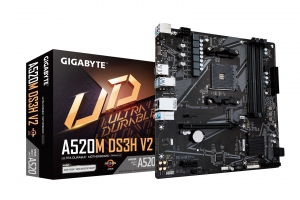

Gigabyte A520M DS3H V2
Gigabyte A520M DS3H V2
Naša cena:
65,06 €
Že od 12.08 EUR
Vaš mesečni obrok

ali

x
275,91 €
Redna cena:
80,32 €
Spletna cena:
65,06 €
Vaš prihranek:
Popust 19,00% (15,26 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331854690
Naša koda:
MBOGG445
Splošni opis:
Gigabyte A520M DS3H V2
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Compatible processor series
AMD Ryzen 3000 Series
,
AMD Ryzen Threadripper PRO 3000 WX-Series
,
AMD Ryzen Threadripper 3000 Series
Processor manufacturer
AMD
Maximum internal memory supported by processor
128 GB
Processor socket
Socket AM4
Maximum number of SMP processors
1
Supported processor sockets
Socket AM4
Graphics
Number of displays supported
3
HDCP
Yes
Maximum resolution
5120 x 2880 pixels
Features
Product colour
Black
Audio chip
Realtek ALC887
Cooling type
Active
PC health monitoring
Power supply
,
Voltage
,
LED
,
CPU
,
Temperature
Windows operating systems supported
Windows 10 x64
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Power source type
ATX
Memory
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Number of memory slots
4
Memory slots type
DIMM
Supported memory clock speeds
3333
,
2400
,
4000
,
2667
,
4400
,
3200
,
2933
,
3600
,
4733
,
2133 MHz
Supported memory module capacities
1GB
,
16GB
,
32GB
,
8GB
,
2GB
,
4GB
Unbuffered memory
Yes
Maximum internal memory
128 GB
ECC сompatibility
ECC & Non-ECC
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
35 mm
Network
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Internal I/O
Total number of SATA connectors
4
TPM connector
Yes
12V power connector
Yes
Number of EATX power connectors
1
Serial port headers
1
CPU fan connector
Yes
Front panel connector
Yes
USB 2.0 connectors
1
Power fan connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
BIOS
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
BIOS type
UEFI AMI
Packaging data
Package depth
265 mm
Package height
54 mm
Package weight
810 g
Package width
265 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Batteries included
Yes
Storage controllers
Number of HDDs supported
4
Number of storage drives supported
5
RAID levels
0
,
1
,
10
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Rear panel I/O ports
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
PS/2 ports quantity
1
DVI-D ports quantity
1
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPort version
2.0
USB connector type
USB Type-A
Digital audio optical out
1
USB 2.0 ports quantity
2
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x1 (Gen 3.x) slots
2
Battery
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Safety warning
Warnings
Avoid direct contact with sensitive electronic components.
,
Store away from water and sources of moisture.
,
Dispose of according to local electro-waste regulations.
