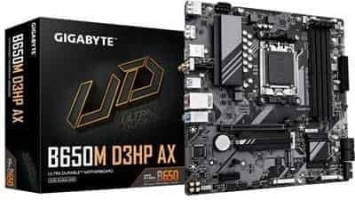

GIGABYTE B650M D3HP AX
GIGABYTE B650M D3HP AX
Naša cena:
122,53 €
Že od 11.51 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
151,27 €
Spletna cena:
122,53 €
Vaš prihranek:
Popust 19,00% (28,74 €)
Garancija:
2 leti
Dobavljivost:
Dobava 1-2 dni
EAN:
4719331859510
Naša koda:
MBOGI365
Splošni opis:
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Compatible processor series
AMD Ryzen 9000 Series
,
AMD Ryzen 8000 Series
,
AMD Ryzen 7000 Series
Processor socket
Socket AM5
Processor manufacturer
AMD
Supported processor sockets
Socket AM5
Graphics
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
DirectX version
12.0
Features
PC health monitoring
Fan
,
Voltage
,
Temperature
Power source type
ATX
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64
,
Windows 11 x64
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Cooling type
Passive
Motherboard chipset
AMD B650
Audio chip
Realtek ALC897
Product colour
Bronze
Memory
Memory slots type
DIMM
Memory channels
Dual-channel
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
8000 MHz
Supported memory clock speeds
7000
,
6600
,
8000 MHz
,
5600
,
7200 MHz
,
6400
,
6800
,
5200
,
7600 MHz
,
7800
,
6200
,
4800
,
6000
Maximum internal memory
256 GB
Unbuffered memory
Yes
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
35 mm
Network
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 5 (802.11ac)
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 4 (802.11n)
,
Wi-Fi 6E (802.11ax)
,
802.11g
,
802.11b
Wi-Fi
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
WLAN controller model
Realtek RTL8852CE
Bluetooth version
5.3
Bluetooth
Yes
LAN controller
Realtek RTL8125
Internal I/O
ATX Power connector (24-pin)
Yes
USB 2.0 connectors
2
TPM connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
EPS power connector (8-pin)
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
2
CPU fan connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
12V power connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
3
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
Packaging data
Package width
270 mm
Package depth
268 mm
Package weight
1.2 kg
Package height
68 mm
Packaging content
Batteries included
Yes
Screws included
Yes
Antenna included
Yes
Storage controllers
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Supported storage drive types
HDD & SSD
RAID levels
10
,
1
,
0
Number of storage drives supported
6
Number of HDDs supported
4
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
DisplayPorts quantity
2
USB 2.0 ports quantity
2
Headphone outputs
1
Microphone in
Yes
HDMI version
2.1
DisplayPort version
1.4
HDMI ports quantity
1
PS/2 ports quantity
1
Ethernet LAN (RJ-45) ports
1
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
1
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
1st M.2 highest PCI Express generation
4.0
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
