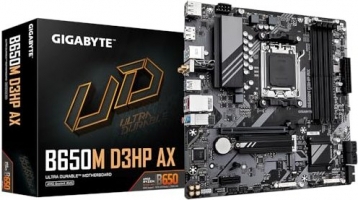

GIGABYTE B650M D3HP AX DDR5
GIGABYTE B650M D3HP AX DDR5
Naša cena:
124,62 €
Že od 11.74 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
153,85 €
Spletna cena:
124,62 €
Vaš prihranek:
Popust 19,00% (29,23 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331859510
Naša koda:
MBOGG453
Splošni opis:
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series
,
AMD Ryzen 8000 Series
,
AMD Ryzen 9000 Series
Processor manufacturer
AMD
Graphics
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Parallel processing technology support
Not supported
Features
Product colour
Bronze
Motherboard chipset
AMD B650
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
PC health monitoring
Voltage
,
Fan
,
Temperature
Audio chip
Realtek ALC897
Cooling type
Passive
Motherboard chipset family
AMD
Power source type
ATX
Windows operating systems supported
Windows 10 x64
,
Windows 11 x64
Memory
Supported memory clock speeds
5200
,
6200
,
6000
,
6600
,
5600 MHz
,
6800 MHz
,
6400 MHz
,
4800
,
7000 MHz
,
8000
,
7600
,
7800
,
7200
Maximum internal memory
256 GB
Unbuffered memory
Yes
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Memory channels
Dual-channel
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Memory slots type
DIMM
Supported memory clock speed (max)
8000 MHz
Weight & dimensions
Height
35 mm
Depth
244 mm
Width
244 mm
Network
LAN controller
Realtek RTL8125
Bluetooth
Yes
Wi-Fi standards
802.11g
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 4 (802.11n)
,
Wi-Fi 5 (802.11ac)
,
Wi-Fi 6E (802.11ax)
,
802.11b
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth version
5.3
Wi-Fi
Yes
Ethernet LAN
Yes
WLAN controller model
Realtek RTL8852CE
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Internal I/O
ATX Power connector (24-pin)
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of chassis fan connectors
2
CPU fan connector
Yes
USB 2.0 connectors
2
Number of RGB LED pin headers
3
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
EPS power connector (8-pin)
Yes
12V power connector
Yes
RGB LED pin header
Yes
TPM connector
Yes
Front panel connector
Yes
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
Packaging data
Package weight
1.2 kg
Package width
270 mm
Package height
68 mm
Package depth
268 mm
Packaging content
Screws included
Yes
Antenna included
Yes
Batteries included
Yes
Storage controllers
Supported storage drive types
HDD & SSD
RAID levels
1
,
0
,
10
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Number of storage drives supported
6
Number of HDDs supported
4
Rear panel I/O ports
DisplayPort version
1.4
USB 2.0 ports quantity
2
DisplayPorts quantity
2
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
PS/2 ports quantity
1
HDMI version
2.1
Headphone outputs
1
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
1st M.2 largest key size
2580
2nd M.2 largest key size
22110
1st M.2 highest PCI Express generation
4.0
2nd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 4.x) slots
1
Battery
Lithium weight per battery
0.07 g
Battery type
CR2032
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
