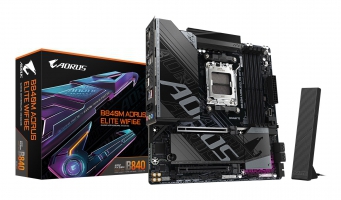

Gigabyte B840M AORUS ELITE WIFI6E
Gigabyte B840M AORUS ELITE WIFI6E
Naša cena:
169,41 €
Že od 15.91 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
209,16 €
Spletna cena:
169,41 €
Vaš prihranek:
Popust 19,00% (39,75 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331867331
Naša koda:
MBOGG377
Splošni opis:
Gigabyte B840M AORUS ELITE WIFI6E
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 9000 Series
,
AMD Ryzen 8000 Series
,
AMD Ryzen 7000 Series
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Graphics
Parallel processing technology support
Not supported
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Features
Cooling type
Passive
Component for
PC
Power source type
ATX
Windows operating systems supported
Windows 10 x64
,
Windows 11 x64
Motherboard chipset
AMD B840
Audio chip
Realtek ALC897
PC health monitoring
Fan
,
Water cooling
,
Temperature
,
Voltage
Motherboard form factor
micro ATX
Product colour
Dark brown
Audio output channels
7.1 channels
Motherboard chipset family
AMD
Memory
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Supported memory clock speed (max)
8200 MHz
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Supported memory clock speeds
6200
,
5800
,
5600
,
7200 MHz
,
8000 MHz
,
7400
,
7600 MHz
,
7800
,
6400
,
4400
,
7950
,
7900
,
5200
,
4800
,
6000
,
7000
,
8200 MHz
,
6600
,
6800
Maximum internal memory
256 GB
Unbuffered memory
Yes
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
35 mm
Network
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth version
5.3
Wi-Fi standards
802.11b
,
Wi-Fi 5 (802.11ac)
,
Wi-Fi 4 (802.11n)
,
802.11g
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 6E (802.11ax)
WLAN controller model
Realtek RTL8852CE
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Ethernet LAN
Yes
Bluetooth
Yes
LAN controller
Realtek RTL8125
Internal I/O
EPS power connector (8-pin)
Yes
TPM connector
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
4
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
12V power connector
Yes
Front panel connector
Yes
Number of water pump connectors
2
Number of RGB LED pin headers
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
USB 2.0 connectors
2
BIOS
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Desktop Management Interface (DMI) version
2.7
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Packaging data
Package width
270 mm
Package height
68 mm
Package weight
1.59 kg
Package depth
268 mm
Packaging content
Batteries included
Yes
Screws included
Yes
Antenna included
Yes
Storage controllers
RAID levels
0
,
1
,
10
RAID support
Yes
Number of HDDs supported
4
Number of storage drives supported
6
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Supported storage drive types
HDD & SSD
Rear panel I/O ports
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Headphone outputs
1
PS/2 ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Line-in
Yes
Microphone in
Yes
WiFi-AP antenna jack
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI version
2.1
DisplayPort version
1.4
DisplayPorts quantity
1
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
1st M.2 highest PCI Express generation
4.0
Battery
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Other features
Weight
1.5 kg
Logistics data
Products per shipping (inner) case
1 pc(s)
