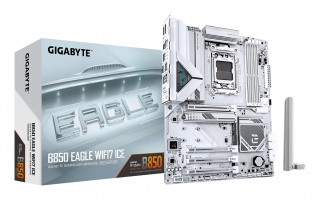

Gigabyte B850 EAGLE WIFI7 ICE
Gigabyte B850 EAGLE WIFI7 ICE
Naša cena:
195,84 €
Že od 18.41 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
241,78 €
Spletna cena:
195,84 €
Vaš prihranek:
Popust 19,00% (45,94 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331871239
Naša koda:
MBOGG379
Splošni opis:
GIGABYTE B850 EAGLE WIFI7 ICE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB 3.2 Gen 2 B850 EAGLE WF7 ICE
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Compatible processor series
AMD Ryzen 7000 Series
,
AMD Ryzen 8000 Series
,
AMD Ryzen 9000 Series
Processor manufacturer
AMD
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Graphics
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
HDCP
Yes
DirectX version
12.0
On-board graphics card
No
Features
Power source type
ATX
PC health monitoring
Water cooling
,
Voltage
,
Temperature
,
Fan
Product colour
White
Audio output channels
7.1 channels
Motherboard chipset family
AMD
Audio chip
Realtek ALC897
Motherboard form factor
ATX
Motherboard chipset
AMD B850
Windows operating systems supported
Windows 11 x64
Component for
PC
Cooling type
Passive
Memory
ECC сompatibility
Non-ECC
Supported memory clock speeds
4400
,
6200
,
6000
,
5200
,
4800
,
5800
,
5600
,
6600
,
7950
,
7900
,
6800
,
7200
,
7000
,
8200 MHz
,
7600 MHz
,
7800
,
7400
,
6400
,
8000
Maximum internal memory per slot
64 GB
Unbuffered memory
Yes
Maximum internal memory
256 GB
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory channels
Dual-channel
Supported memory clock speed (max)
8200 MHz
Weight & dimensions
Height
35 mm
Width
305 mm
Depth
244 mm
Network
Bluetooth
Yes
LAN controller
Realtek RTL8125
Wi-Fi standards
802.11b
,
802.11g
,
Wi-Fi 4 (802.11n)
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 6E (802.11ax)
,
Wi-Fi 5 (802.11ac)
,
Wi-Fi 7 (802.11be)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes
Ethernet LAN
Yes
WLAN controller model
Realtek RTL8922AE
Internal I/O
Number of water pump connectors
2
Number of RGB LED pin headers
4
Number of EPS power connectors (8-pin)
1
Number of CPU fan connectors
2
USB 2.0 connectors
2
ATX Power connector (24-pin)
Yes
Front panel audio connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
Peripheral (Molex) power connectors (4-pin)
1
Number of chassis fan connectors
4
12V power connector
Yes
RGB LED pin header
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
TPM connector
Yes
Front panel connector
Yes
BIOS
BIOS type
UEFI AMI
Desktop Management Interface (DMI) version
2.7
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
System Management BIOS (SMBIOS) version
2.7
ACPI version
5.0
Packaging data
Package height
80 mm
Package weight
1.89 kg
Package width
335 mm
Package depth
270 mm
Packaging content
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
Storage controllers
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID support
Yes
Supported storage drive types
HDD & SSD
RAID levels
10
,
0
,
1
Number of storage drives supported
7
Number of HDDs supported
4
Rear panel I/O ports
DisplayPorts quantity
1
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
WiFi-AP antenna jack
2
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
PS/2 ports quantity
1
Line-in
Yes
Microphone in
Yes
Expansion slots
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
1st M.2 highest PCI Express generation
5.0
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
Number of M.2 (M) slots
3
PCI Express x16 (Gen 5.x) slots
1
Battery
Lithium weight per battery
0.07 g
Battery type
CR2032
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Other features
Weight
1.69 kg
Logistics data
Products per shipping (inner) case
1 pc(s)
Priročniki:
