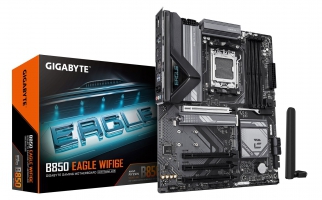

Gigabyte B850 EAGLE WIFI6E
Gigabyte B850 EAGLE WIFI6E
Naša cena:
184,23 €
Že od 17.31 EUR
Vaš mesečni obrok

ali

x
275,91 €
Redna cena:
227,44 €
Spletna cena:
184,23 €
Vaš prihranek:
Popust 19,00% (43,21 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331866587
Naša koda:
MBOGG418
Splošni opis:
Gigabyte B850 EAGLE WIFI6E
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Supported processor sockets
Socket AM5
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 8000 Series
,
AMD Ryzen 9000 Series
,
AMD Ryzen 7000 Series
Processor socket
Socket AM5
Graphics
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
DirectX version
12.0
HDCP
Yes
Features
Motherboard chipset
AMD B850
PC health monitoring
Voltage
,
Water cooling
,
Temperature
,
Fan
Component for
PC
Motherboard form factor
ATX
Product colour
Bronze
Power source type
ATX
Windows operating systems supported
Windows 10 x64
,
Windows 11 x64
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Memory
Memory slots type
DIMM
Supported memory clock speeds
8000 MHz
,
6600
,
6000
,
7400
,
7950
,
7900
,
7000
,
8200 MHz
,
6800
,
6400
,
5600
,
7200 MHz
,
6200
,
7600 MHz
,
7800
,
4800
,
5200
,
4400
,
5800
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
8200 MHz
Number of memory slots
4
Memory channels
Dual-channel
Maximum internal memory
256 GB
Unbuffered memory
Yes
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Weight & dimensions
Width
305 mm
Height
35 mm
Depth
244 mm
Network
Wi-Fi standards
802.11b
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 5 (802.11ac)
,
Wi-Fi 4 (802.11n)
,
Wi-Fi 6E (802.11ax)
,
802.11g
Bluetooth version
5.3
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Ethernet interface type
Gigabit Ethernet
WLAN controller model
Realtek RTL8111H
Wi-Fi
Yes
Bluetooth
Yes
Internal I/O
Number of SATA III connectors
4
Total number of SATA connectors
4
12V power connector
Yes
CPU fan connector
Yes
Front panel connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Peripheral (Molex) power connectors (4-pin)
1
RGB LED pin header
Yes
Number of chassis fan connectors
3
ATX Power connector (24-pin)
Yes
USB 2.0 connectors
2
TPM connector
Yes
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
Number of RGB LED pin headers
4
Number of water pump connectors
2
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
BIOS
Clear CMOS jumper
Yes
Clear CMOS button
Yes
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package depth
270 mm
Package width
335 mm
Package height
80 mm
Package weight
1.93 kg
Packaging content
Batteries included
Yes
Screws included
Yes
Antenna included
Yes
Storage controllers
RAID levels
0
,
1
,
10
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
RAID support
Yes
Rear panel I/O ports
HDMI ports quantity
1
DisplayPorts quantity
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
4
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
WiFi-AP antenna jack
2
DisplayPort version
2.1
Expansion slots
Number of M.2 (M) slots
3
PCI Express x16 (Gen 3.x) slots
3
PCI Express x16 (Gen 5.x) slots
1
1st M.2 largest key size
25110
3rd M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
3rd M.2 highest PCI Express generation
4.0
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
Battery
Battery type
CR2032
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery
0.07 g
Other features
Weight
1.68 kg
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
