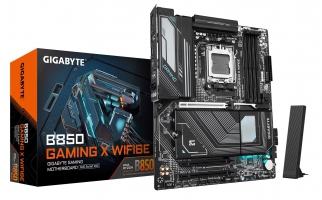

Gigabyte B850 GAMING X WIFI6E
Gigabyte B850 GAMING X WIFI6E
Naša cena:
202,74 €
Že od 19.07 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
250,30 €
Spletna cena:
202,74 €
Vaš prihranek:
Popust 19,00% (47,56 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331866457
Naša koda:
MBOGG417
Splošni opis:
Gigabyte B850 GAMING X WIFI6E
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Supported processor sockets
Socket AM5
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 7000 Series
,
AMD Ryzen 8000 Series
,
AMD Ryzen 9000 Series
Processor socket
Socket AM5
Graphics
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
Features
Windows operating systems supported
Windows 10 x64
,
Windows 11 x64
Product colour
Bronze
Motherboard chipset
AMD B850
Audio output channels
7.1 channels
Audio chip
Realtek ALC897
Motherboard form factor
ATX
Component for
PC
PC health monitoring
Fan
,
Water cooling
,
Voltage
,
Temperature
Motherboard chipset family
AMD
Power source type
ATX
Memory
Number of memory slots
4
Memory channels
Dual-channel
Supported memory types
DDR5-SDRAM
Memory slots type
DIMM
Supported memory clock speed (max)
8200 MHz
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Supported memory clock speeds
6800
,
7000
,
8200 MHz
,
6600
,
5200
,
5800
,
6200
,
8000
,
7400
,
4400
,
7950
,
7900
,
5600
,
7200
,
6400
,
4800
,
7600 MHz
,
7800
,
6000
Maximum internal memory
256 GB
Unbuffered memory
Yes
Weight & dimensions
Height
35 mm
Width
305 mm
Depth
244 mm
Network
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Wi-Fi standards
Wi-Fi 4 (802.11n)
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 5 (802.11ac)
,
Wi-Fi 6E (802.11ax)
,
802.11g
,
802.11b
Ethernet LAN
Yes
WLAN controller model
Realtek RTL8111H
Bluetooth
Yes
Internal I/O
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
EPS power connector (8-pin)
Yes
RGB LED pin header
Yes
USB 3.2 Gen 2x2 connectors
1
Number of RGB LED pin headers
4
Number of water pump connectors
2
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Serial port headers
1
USB 2.0 connectors
2
BIOS
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
ACPI version
5.0
Clear CMOS jumper
Yes
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package height
80 mm
Package width
335 mm
Package depth
270 mm
Package weight
2.38 kg
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Storage controllers
Number of storage drives supported
7
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
RAID levels
10
,
1
,
0
RAID support
Yes
Rear panel I/O ports
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI ports quantity
1
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI version
2.1
WiFi-AP antenna jack
2
DisplayPorts quantity
1
USB 2.0 ports quantity
3
DisplayPort version
2.1
Ethernet LAN (RJ-45) ports
1
Expansion slots
PCI Express x16 (Gen 5.x) slots
1
2nd M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
Number of M.2 (M) slots
3
Battery
Number of battery cells
1
Battery type
CR2032
Battery weight
3 g
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery
0.07 g
Other features
Weight
2.1 kg
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
