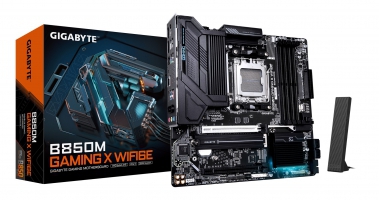

Gigabyte B850M GAMING X WIFI6E
Gigabyte B850M GAMING X WIFI6E
Naša cena:
190,33 €
Že od 17.87 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
234,98 €
Spletna cena:
190,33 €
Vaš prihranek:
Popust 19,00% (44,65 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331866433
Naša koda:
MBOGG416
Splošni opis:
Gigabyte B850M GAMING X WIFI6E
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Processor socket
Socket AM5
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 9000 Series
,
AMD Ryzen 7000 Series
,
AMD Ryzen 8000 Series
Supported processor sockets
Socket AM5
Graphics
On-board graphics card
No
HDCP
Yes
DirectX version
12.0
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
Features
Motherboard form factor
micro ATX
Audio chip
Realtek ALC897
Power source type
ATX
Audio output channels
7.1 channels
PC health monitoring
Fan
,
Voltage
,
Temperature
,
Water cooling
Motherboard chipset
AMD B850
Product colour
Bronze
Motherboard chipset family
AMD
Windows operating systems supported
Windows 11 x64
,
Windows 10 x64
Memory
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speed (max)
8200 MHz
Memory slots type
DIMM
Number of memory slots
4
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Supported memory clock speeds
8000 MHz
,
6400
,
6000
,
5600
,
7200 MHz
,
4800
,
5200
,
6600
,
5800
,
7400
,
6800
,
7000
,
8200 MHz
,
4400
,
7950
,
7900
,
7600 MHz
,
7800
Maximum internal memory
256 GB
Unbuffered memory
Yes
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
35 mm
Network
Bluetooth version
5.3
Wi-Fi standards
Wi-Fi 4 (802.11n)
,
802.11g
,
802.11b
,
Wi-Fi 6E (802.11ax)
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 5 (802.11ac)
Ethernet interface type
2.5 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Realtek RTL8852CE
Wi-Fi
Yes
Ethernet LAN
Yes
Bluetooth
Yes
Internal I/O
12V power connector
Yes
TPM connector
Yes
Number of water pump connectors
2
Number of CPU fan connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of RGB LED pin headers
4
RGB LED pin header
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
USB 2.0 connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
CPU fan connector
Yes
Serial port headers
1
BIOS
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
BIOS type
UEFI AMI
Packaging data
Package depth
268 mm
Package height
68 mm
Package width
270 mm
Package weight
1.75 kg
Packaging content
Screws included
Yes
Batteries included
Yes
Antenna included
Yes
Storage controllers
Number of storage drives supported
6
Number of HDDs supported
4
RAID support
Yes
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
10
,
1
,
0
Rear panel I/O ports
Headphone outputs
1
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI version
2.1
WiFi-AP antenna jack
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPort version
2.1
USB 2.0 ports quantity
4
Expansion slots
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
PCI Express x16 (Gen 5.x) slots
1
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 3.x) slots
1
Number of M.2 (M) slots
2
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Other features
Weight
1.54 kg
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Safety warning
Warnings
Do not disassemble to avoid damage to internal components and loss of warranty.
