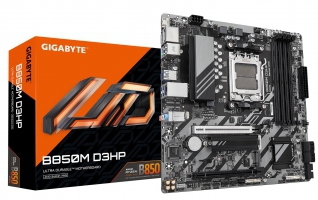

Gigabyte B850M D3HP
Gigabyte B850M D3HP
Naša cena:
137,09 €
Že od 12.91 EUR
Vaš mesečni obrok

ali

x
275,91 €
Redna cena:
169,25 €
Spletna cena:
137,09 €
Vaš prihranek:
Popust 19,00% (32,16 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331867058
Naša koda:
MBOGG415
Splošni opis:
Gigabyte B850M D3HP
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 8000 Series
,
AMD Ryzen 7000 Series
,
AMD Ryzen 9000 Series
Processor manufacturer
AMD
Graphics
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Features
PC health monitoring
Voltage
,
Fan
,
Temperature
,
Water cooling
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64
,
Windows 11 x64
Audio chip
Realtek ALC897
Product colour
Bronze
Motherboard chipset
AMD B850
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Power source type
ATX
Memory
Unbuffered memory
Yes
Memory slots type
DIMM
Supported memory clock speeds
5200
,
4400
,
7000
,
6600
,
6000
,
7600 MHz
,
7800
,
6200
,
6666
,
6800
,
8000 MHz
,
8200 MHz
,
6400
,
4800
,
5600
,
7200 MHz
Memory channels
Dual-channel
Maximum internal memory
256 GB
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
8200 MHz
Number of memory slots
4
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Weight & dimensions
Height
35 mm
Width
244 mm
Depth
244 mm
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi
No
Internal I/O
Front panel audio connector
Yes
USB 2.0 connectors
2
TPM connector
Yes
EPS power connector (8-pin)
Yes
Number of SATA III connectors
4
RGB LED pin header
Yes
Peripheral (Molex) power connectors (4-pin)
1
Serial port headers
1
ATX Power connector (24-pin)
Yes
12V power connector
Yes
CPU fan connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Front panel connector
Yes
Number of chassis fan connectors
3
Number of RGB LED pin headers
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
BIOS
BIOS type
UEFI AMI
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
Packaging content
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
Storage controllers
Supported storage drive interfaces
M.2, SATA III
RAID levels
10
,
1
,
0
Supported storage drive types
HDD & SSD
Number of storage drives supported
6
RAID support
Yes
Number of HDDs supported
4
Rear panel I/O ports
DisplayPort version
2.1
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
DisplayPorts quantity
1
HDMI version
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
WiFi-AP antenna jack
2
USB 2.0 ports quantity
2
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 5.x) slots
1
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Battery type
CR2032
Number of battery cells
1
Lithium weight per battery
0.07 g
Other features
Weight
1.3 kg
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Safety warning
Warnings
Do not disassemble to avoid damage to internal components and loss of warranty.
,
Avoid contact with liquids to prevent electronic damage.
,
Dispose of in accordance with local regulations for electronic waste.
