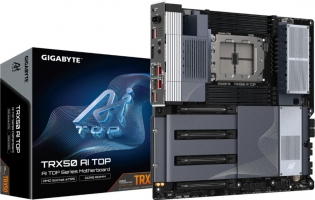

Gigabyte TRX50 AI TOP (TR5,TR5,E-ATX,DDR5) TRX50 AI TOP
shape factor
E-ATX (SSI EEB)
Socket
AMD sTR5
chipset
AMD TRX50
RAM
8x DDR5 DIMM, quad PC5-62400R/DDR5-7800 (OC), max. 2TB (RDIMM-3DS)
Extension slots
3x PCIe 5.0 x16, 1x PCIe 4.0 x16, 4x M.2/M-Key (PCIe 5.0 x4, 2280)
external connectors
1x USB4 with DisplayPort (40Gb/s, Intel JHL8540, iGPU), 1x USB4 (40Gb/s, Intel JHL8540), 6x USB-A 3.1 (10Gb/s), 2x RJ-45 10Gb LAN (Marvell AQtion AQC113CS), 2x 3.5mm jack (Realtek ALC4080), 1x DisplayPort-In 1.4, 2x antenna connector RP-SMA
Internal connectors
1x USB-C 3.2 Key-A Header (20Gb/s), 2x USB 3.0 Header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s
Header Cooling
1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin, 2x fan 4-Pin, 4x fan/pump 4-Pin, 1x Noise-sensor, 2x Thermal-sensor
Header Lighting
1x 4-Pin RGB (+12V/G/R/B, max. 2A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 5A)
buttons/Switches
Power-Button (internal), Reset-Button (internal), USB BIOS Flashback/Q-Flash Plus (external)
Audio
7.1 (Realtek ALC4080), DTS:X Ultra
Graphics
not available
Wireless
Wi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2, Qualcomm QCNCM865), Bluetooth 5.3
RAID level
0/1/10 (TRX50)
Power connections
1x 24-Pin ATX, 2x 8-Pin EPS12V, 4x 8-Pin PCIe
VRM
24 virtual phases (16+8+4)
MOSFETs CPU (VCORE)
16x 110A
MOSFETs SoC (VCCGT)
8x 110A
MOSFETs AUX (VCCAUX)
4x
Lighting
not available
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (segment indication), Diagnostic LED (LED indicators), 4x M.2-passive cooler, I/O-shield integrated, Backplate, ECC-support, onboard TPM 2.0 support (AMD fTPM)
