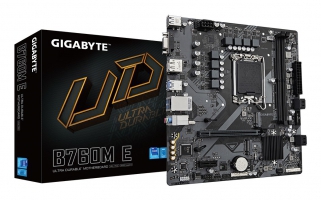

Gigabyte B760M E DDR5 (B760M E)
Gigabyte B760M E DDR5 (B760M E)
Naša cena:
96,97 €
Že od 17.76 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
119,72 €
Spletna cena:
96,97 €
Vaš prihranek:
Popust 19,00% (22,75 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331856052
Naša koda:
MBOGG361
Splošni opis:
GIGABYTE B760M E Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 7200MHz DDR5 (OC), 2xPCIe 4.0 M.2, 1 GbE LAN, USB 3.2 Gen 1 B760M E
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Supported processor sockets
LGA 1700
Compatible processor series
Intel Core i3 12th Gen
,
Intel Core i3 13th Gen
,
Intel Core i5 13th Gen
,
Intel Core i9 12th Gen
,
Intel Core i9 13th Gen
,
Intel Core i7 13th Gen
,
Intel Core i5 12th Gen
,
Intel Core i7 14th Gen
,
Intel® Pentium® Gold
,
Intel Core i7 12th Gen
,
Intel Core i5 14th Gen
,
Intel® Celeron®
,
Intel Core i3 14th Gen
,
Intel Core i9 14th Gen
Processor manufacturer
Intel
Processor socket
LGA 1700
Graphics
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
Features
Windows operating systems supported
Windows 11 x64
,
Windows 10 x64
Motherboard chipset
Intel B760
Cooling type
Passive
PC health monitoring
Fan
,
Voltage
,
Water cooling
,
Temperature
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Audio chip
Realtek ALC897
Motherboard chipset family
Intel
Power source type
ATX
Memory
Memory channels
Dual-channel
Supported memory clock speeds
7000
,
6600
,
6000
,
4000
,
4800
,
6200
,
5600
,
7200 MHz
,
5200
,
6800
,
6400
,
5800
,
5400
Supported memory clock speed (max)
7200 MHz
Number of memory slots
2
Supported memory types
DDR5-SDRAM
Memory slots type
DIMM
Maximum internal memory
128 GB
Maximum internal memory per slot
64 GB
Unbuffered memory
Yes
ECC сompatibility
ECC & Non-ECC
Weight & dimensions
Depth
215 mm
Width
230 mm
Height
35 mm
Network
Ethernet interface type
Gigabit Ethernet
Wi-Fi
No
LAN controller
Realtek RTL8111H
Ethernet LAN
Yes
Internal I/O
Number of RGB LED pin headers
1
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
Number of chassis fan connectors
2
CPU fan connector
Yes
RGB LED pin header
Yes
S/PDIF out connector
Yes
12V power connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA III connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Front panel audio connector
Yes
Serial port headers
1
USB 2.0 connectors
2
BIOS
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
BIOS type
UEFI AMI
Packaging data
Package depth
265 mm
Package width
265 mm
Package height
54 mm
Package weight
900 g
Packaging content
Screws included
Yes
Storage controllers
Number of storage drives supported
6
RAID levels
5
,
10
,
0
,
1
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Number of HDDs supported
4
Rear panel I/O ports
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Headphone outputs
1
HDMI version
2.1
Line-in
Yes
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
1
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
2
DisplayPort version
1.2
Expansion slots
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
Number of M.2 (M) slots
2
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Number of battery cells
1
Battery weight
3 g
Lithium weight per battery
0.07 g
