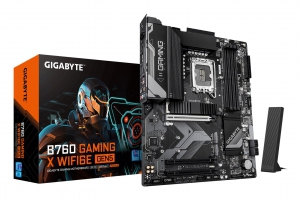

GIGABYTE B760 Gaming X WIFI6E GEN5 LGA1700 DDR5 ATX
B760 G X WF6E GEN5
Naša cena:
133,80 €
Že od 12.59 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
165,18 €
Spletna cena:
133,80 €
Vaš prihranek:
Popust 19,00% (31,38 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331871673
Naša koda:
MBOGG352
Splošni opis:
GIGABYTE B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2 B760 G X WF6E GEN5
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Compatible processor series
Intel Core i5 12th Gen
,
Intel Core i7 14th Gen
,
Intel Core i7 13th Gen
,
Intel Core i3 12th Gen
,
Intel Core i3 13th Gen
,
Intel Core i5 13th Gen
,
Intel Core i9 12th Gen
,
Intel Core i3 14th Gen
,
Intel Core i9 13th Gen
,
Intel Core i9 14th Gen
,
Intel® Pentium® Gold
,
Intel Core i7 12th Gen
,
Intel Core i5 14th Gen
,
Intel® Celeron®
Processor manufacturer
Intel
Graphics
HDCP
Yes
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2304 pixels
Features
Product colour
Dark brown
Audio chip
Realtek ALC897
Motherboard chipset
Intel B760
PC health monitoring
Fan
,
Temperature
,
Water cooling
,
Voltage
Audio output channels
7.1 channels
Power source type
ATX
Motherboard form factor
ATX
Windows operating systems supported
Windows 10 x64
,
Windows 11 x64
Motherboard chipset family
Intel
Cooling type
Passive
Memory
Supported memory clock speeds
6200
,
6800 MHz
,
6600
,
4000
,
4800
,
5800
,
5400
,
6000
,
7600
,
7400
,
5200
,
6400
,
7000 MHz
,
5600 MHz
,
7200
Unbuffered memory
Yes
Maximum internal memory
256 GB
Supported memory clock speed (max)
5600 MHz
Maximum internal memory per slot
64 GB
ECC сompatibility
ECC & Non-ECC
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Memory slots type
DIMM
Memory channels
Dual-channel
Weight & dimensions
Height
35 mm
Depth
244 mm
Width
305 mm
Network
Bluetooth
Yes
LAN controller
Realtek RTL8125
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth version
5.3
Wi-Fi
Yes
Ethernet LAN
Yes
WLAN controller model
Intel Wi-Fi 6E AX210
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11g
,
Wi-Fi 6E (802.11ax)
,
802.11b
,
Wi-Fi 5 (802.11ac)
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 4 (802.11n)
Internal I/O
S/PDIF out connector
Yes
Number of water pump connectors
2
Number of EPS power connectors (8-pin)
1
Number of RGB LED pin headers
4
Number of CPU fan connectors
2
12V power connector
Yes
RGB LED pin header
Yes
ATX Power connector (24-pin)
Yes
Serial port headers
1
Number of chassis fan connectors
4
CPU fan connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
EPS power connector (8-pin)
Yes
Number of SATA III connectors
4
TPM connector
Yes
USB 2.0 connectors
4
Front panel connector
Yes
Front panel audio connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
BIOS
Desktop Management Interface (DMI) version
2.7
Clear CMOS jumper
Yes
BIOS type
UEFI AMI
Packaging data
Package height
80 mm
Package width
335 mm
Package weight
1.8 kg
Package depth
270 mm
Packaging content
Screws included
Yes
Antenna included
Yes
Batteries included
Yes
Storage controllers
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID levels
0
,
10
,
5
,
1
Number of storage drives supported
7
RAID support
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Headphone outputs
1
Line-in
Yes
WiFi-AP antenna jack
2
DisplayPorts quantity
1
HDMI version
2.1
DisplayPort version
1.2
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
Expansion slots
1st M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
1st M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
3
PCI Express x16 (Gen 3.x) slots
2
Battery
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery weight
3 g
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Other features
Weight
1.61 kg
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
