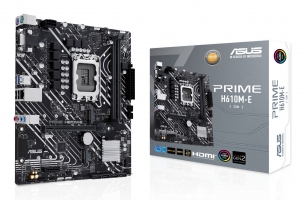

ASUS Prime H610M-E-CSM LGA1700 DDR5 mATX (90MB1G10-M0EAYC)
90MB1G10-M0EAYC
Naša cena:
120,10 €
Že od 11.37 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
148,27 €
Spletna cena:
120,10 €
Vaš prihranek:
Popust 19,00% (28,17 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4711387259795
Naša koda:
MBOAA193
Splošni opis:
ASUS Prime H610M-E-CSM LGA1700 DDR5 mATX (90MB1G10-M0EAYC)
Tehnične lastnosti:
Processor
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Processor manufacturer
Intel
Compatible processor series
Intel® Core™ i3
,
Intel® Core™ i5
,
Intel® Celeron®
,
Intel® Core™ i7
,
Intel® Core™ i9
,
Intel® Pentium® Gold
Graphics
Parallel processing technology support
Not supported
Features
Motherboard form factor
micro ATX
Motherboard chipset
Intel H610
Motherboard chipset family
Intel
Power source type
ATX
Audio output channels
7.1 channels
Component for
PC
Cooling type
Passive
Windows operating systems supported
Windows 11
,
Windows 10
Memory
Supported memory clock speeds
5200
,
5400
,
5600 MHz
,
4800
,
5000
Unbuffered memory
Yes
Maximum internal memory
96 GB
ECC сompatibility
Non-ECC
Number of memory slots
2
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
5600 MHz
Memory slots type
DIMM
Memory channels
Dual-channel
Weight & dimensions
Width
244 mm
Depth
211 mm
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Wi-Fi
No
Internal I/O
S/PDIF out connector
Yes
USB 2.0 connectors
2
Number of SATA III connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
ATX Power connector (24-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
BIOS
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Packaging data
Package height
51.5 mm
Package depth
263 mm
Package width
270 mm
Package weight
890 g
Packaging content
User guide
Yes
Cables included
SATA
Storage controllers
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of storage drives supported
6
Number of HDDs supported
4
Rear panel I/O ports
DisplayPorts quantity
1
DisplayPort version
1.4
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
1
Headphone outputs
1
PS/2 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
Microphone in
Yes
USB 2.0 ports quantity
2
Line-in
Yes
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
1
