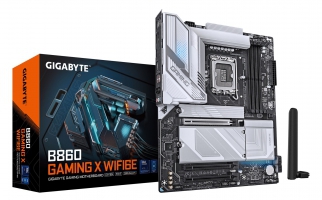

GIGABYTE B860 GAMING X WIFI6E ATX (B860 GAMING X WIFI6E)
GIGABYTE B860 GAMING X WIFI6E ATX (B860 GAMING X WIFI6E)
Naša cena:
209,08 €
Že od 10.27 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
258,13 €
Spletna cena:
209,08 €
Vaš prihranek:
Popust 19,00% (49,05 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331866532
Naša koda:
MBOGG407
Splošni opis:
GIGABYTE B860 GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB4 B860 GAMING X WIFI6E
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Compatible processor series
Intel® Core™ Ultra (Series 1)
,
Intel Core Ultra (Series 2)
Processor socket
LGA 1851 (Socket V1)
Processor manufacturer
Intel
Supported processor sockets
LGA 1851
Graphics
HDCP
Yes
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
Features
Audio output channels
7.1 channels
Audio chip
Realtek ALC897
PC health monitoring
Voltage
,
Fan
,
Water cooling
,
Temperature
Product colour
Dark brown
Motherboard chipset
Intel B860
Motherboard form factor
ATX
Motherboard chipset family
Intel
Cooling type
Passive
Component for
PC
Windows operating systems supported
Windows 11 x64
Power source type
ATX
Memory
Supported memory types
DDR5-SDRAM
Memory slots type
DIMM
Number of memory slots
4
ECC сompatibility
ECC & Non-ECC
Maximum internal memory per slot
64 GB
Supported memory clock speed (max)
9066 MHz
Supported memory clock speeds
9066
,
6400
,
5600
Maximum internal memory
256 GB
Unbuffered memory
Yes
Memory channels
Dual-channel
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Network
Bluetooth version
5.3
WLAN controller model
Intel Wi-Fi 6E AX211
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes
Bluetooth
Yes
LAN controller
Realtek RTL8125
Wi-Fi standards
802.11g
,
Wi-Fi 4 (802.11n)
,
Wi-Fi 6E (802.11ax)
,
802.11b
,
Wi-Fi 5 (802.11ac)
,
802.11a
,
Wi-Fi 6 (802.11ax)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Internal I/O
RGB LED pin header
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of CPU fan connectors
2
Number of water pump connectors
2
Number of EPS power connectors (8-pin)
1
Number of RGB LED pin headers
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
TPM connector
Yes
Number of SATA III connectors
4
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
EPS power connector (8-pin)
Yes
Front panel connector
Yes
Number of chassis fan connectors
4
USB 2.0 connectors
2
BIOS
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
ACPI version
5.0
Packaging data
Package height
80 mm
Package weight
2.21 kg
Package width
335 mm
Package depth
270 mm
Packaging content
Screws included
Yes
Antenna included
Yes
Batteries included
Yes
Storage controllers
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
RAID levels
0
,
1
,
5
,
10
RAID support
Yes
Rear panel I/O ports
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
WiFi-AP antenna jack
2
USB4 Gen 2x2 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI ports quantity
1
DisplayPort version
2.1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI version
2.1
USB 2.0 ports quantity
5
DisplayPorts quantity
1
Expansion slots
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
Number of M.2 (M) slots
3
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Battery type
CR2032
Other features
Weight
1.93 kg
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
