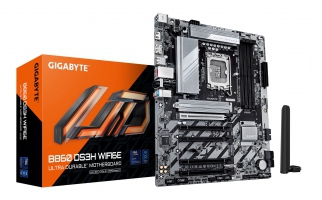

GIGABYTE B860 DS3H WIFI6E ATX (B860 DS3H WIFI6E)
GIGABYTE B860 DS3H WIFI6E ATX (B860 DS3H WIFI6E)
Naša cena:
163,06 €
Že od 15.35 EUR
Vaš mesečni obrok

ali

x
275,91 €
Redna cena:
201,31 €
Spletna cena:
163,06 €
Vaš prihranek:
Popust 19,00% (38,25 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331867515
Naša koda:
MBOGG405
Splošni opis:
GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2 B860 DS3H WIFI6E
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Features
Windows operating systems supported
Windows 11 x64
,
Windows 10 x64
Motherboard chipset
Intel B860
Product colour
Dark brown
Motherboard chipset family
Intel
PC health monitoring
Water cooling
,
Temperature
,
Fan
,
Voltage
Cooling type
Passive
Motherboard form factor
ATX
Audio output channels
7.1 channels
Audio chip
Realtek ALC897
Power source type
ATX
Component for
PC
Memory
Supported memory clock speeds
8800
,
7950
,
7900
,
7000
,
8200 MHz
,
8600
,
5600
,
7200 MHz
,
6400
,
6800
,
8400
,
8266
,
8000 MHz
,
9066
,
6600
,
7600 MHz
,
7800
,
7400
Maximum internal memory
256 GB
Unbuffered memory
Yes
Memory channels
Dual-channel
Supported memory clock speed (max)
9066 MHz
Number of memory slots
4
Memory slots type
DIMM
ECC сompatibility
ECC & Non-ECC
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Weight & dimensions
Depth
244 mm
Height
35 mm
Width
305 mm
Network
Wi-Fi standards
Wi-Fi 6E (802.11ax)
,
802.11g
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
802.11b
,
Wi-Fi 4 (802.11n)
,
Wi-Fi 5 (802.11ac)
Bluetooth
Yes
LAN controller
Realtek RTL8125
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Bluetooth version
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Wi-Fi
Yes
Internal I/O
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
Front panel audio connector
Yes
Serial port headers
1
EPS power connector (8-pin)
Yes
Number of chassis fan connectors
4
CPU fan connector
Yes
TPM connector
Yes
S/PDIF out connector
Yes
Number of CPU fan connectors
2
Number of RGB LED pin headers
4
Number of EPS power connectors (8-pin)
1
Number of water pump connectors
3
RGB LED pin header
Yes
BIOS
ACPI version
5.0
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Packaging content
Screws included
Yes
Antenna included
Yes
Batteries included
Yes
Storage controllers
RAID levels
10
,
1
,
0
,
5
Supported storage drive types
HDD & SSD
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
6
Number of HDDs supported
4
Rear panel I/O ports
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
4
DisplayPort version
2.1
PS/2 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI version
2.1
Microphone in
Yes
HDMI ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Headphone outputs
1
Line-in
Yes
WiFi-AP antenna jack
2
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 5.x) slots
1
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
25110
PCI Express x16 (Gen 4.x) slots
4
2nd M.2 highest PCI Express generation
4.0
Battery
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Other features
Weight
2 kg
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
