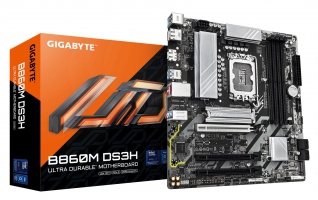

GIGABYTE B860M DS3H mATX (B860M DS3H)
GIGABYTE B860M DS3H mATX (B860M DS3H)
Naša cena:
142,67 €
Že od 13.43 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
176,13 €
Spletna cena:
142,67 €
Vaš prihranek:
Popust 19,00% (33,46 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331866709
Naša koda:
MBOGG401
Splošni opis:
GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2 B860M DS3H
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
,
Intel® Core™ Ultra (Series 1)
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Graphics
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
DirectX version
12.0
Parallel processing technology support
Not supported
Features
Motherboard chipset
Intel B860
Audio chip
Realtek ALC897
Windows operating systems supported
Windows 11 x64
,
Windows 10 x64
PC health monitoring
Temperature
,
Water cooling
,
Fan
,
Voltage
Product colour
Dark brown
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Power source type
ATX
Cooling type
Passive
Memory
Maximum internal memory
256 GB
Supported memory clock speeds
6400 MHz
,
5600 MHz
,
9066 MHz
ECC сompatibility
ECC & Non-ECC
Unbuffered memory
Yes
Number of memory slots
4
Memory channels
Dual-channel
Supported memory clock speed (max)
9066 MHz
Supported memory types
DDR5-SDRAM
Memory slots type
DIMM
Maximum internal memory per slot
64 GB
Weight & dimensions
Height
35 mm
Width
244 mm
Depth
244 mm
Network
LAN controller
Realtek RTL8125
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Wi-Fi
No
Internal I/O
ATX Power connector (24-pin)
Yes
TPM connector
Yes
Number of chassis fan connectors
2
CPU fan connector
Yes
Front panel connector
Yes
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 2.0 connectors
2
Number of SATA III connectors
4
RGB LED pin header
Yes
Number of CPU fan connectors
2
Number of RGB LED pin headers
4
Number of EPS power connectors (8-pin)
1
Number of water pump connectors
2
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
Packaging data
Package depth
265 mm
Package weight
1.09 kg
Package width
265 mm
Package height
54 mm
Packaging content
Batteries included
Yes
Screws included
Yes
Storage controllers
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
10
,
0
,
1
,
5
Number of storage drives supported
6
Number of HDDs supported
4
Rear panel I/O ports
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
DisplayPort version
2.1
HDMI version
2.1
PS/2 ports quantity
1
HDMI ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Microphone in
Yes
Headphone outputs
1
Line-in
Yes
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
5
PCI Express x16 (Gen 5.x) slots
1
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
1st M.2 highest PCI Express generation
5.0
Battery
Lithium weight per battery
0.07 g
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Other features
Weight
1 kg
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Safety warning
Warnings
Do not open or modify the motherboard to prevent damage.
,
In case of installation problems, contact a qualified service technician.
,
When disposing of the product, follow local regulations for the recycling of electronics.
