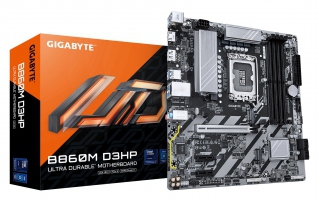

GIGABYTE B860M D3HP mATX (B860M D3HP)
GIGABYTE B860M D3HP mATX (B860M D3HP)
Naša cena:
127,23 €
Že od 12.03 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
157,07 €
Spletna cena:
127,23 €
Vaš prihranek:
Popust 19,00% (29,84 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331866860
Naša koda:
MBOGG399
Splošni opis:
GIGABYTE B860M D3HP Motherboard - Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1 B860M D3HP
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Supported processor sockets
LGA 1851
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
,
Intel® Core™ Ultra (Series 1)
Graphics
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
HDCP
Yes
Features
Product colour
Dark brown
Audio chip
Realtek ALC897
Motherboard chipset
Intel B860
Audio output channels
7.1 channels
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
PC health monitoring
Water cooling
,
Fan
,
Voltage
,
Temperature
Power source type
ATX
Windows operating systems supported
Windows 10 x64
,
Windows 11 x64
Cooling type
Passive
Component for
PC
Memory
Supported memory clock speeds
5600 MHz
,
6400 MHz
,
9066 MHz
Unbuffered memory
Yes
Maximum internal memory
256 GB
ECC сompatibility
ECC & Non-ECC
Supported memory clock speed (max)
9066 MHz
Maximum internal memory per slot
64 GB
Memory channels
Dual-channel
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Memory slots type
DIMM
Weight & dimensions
Height
35 mm
Depth
244 mm
Width
244 mm
Network
LAN controller
Realtek RTL8111H
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Internal I/O
RGB LED pin header
Yes
Number of CPU fan connectors
2
Number of water pump connectors
2
ATX Power connector (24-pin)
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of RGB LED pin headers
3
Number of EPS power connectors (8-pin)
1
Serial port headers
1
USB 2.0 connectors
2
CPU fan connector
Yes
Number of chassis fan connectors
2
TPM connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
BIOS
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
ACPI version
5.0
Packaging data
Package height
54 mm
Package depth
265 mm
Package width
265 mm
Packaging content
Screws included
Yes
Batteries included
Yes
Storage controllers
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
10
,
1
,
5
,
0
Supported storage drive types
HDD & SSD
Number of storage drives supported
6
Number of HDDs supported
4
Rear panel I/O ports
USB 2.0 ports quantity
3
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPort version
2.1
Headphone outputs
1
HDMI version
2.1
Line-in
Yes
PS/2 ports quantity
1
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Expansion slots
2nd M.2 highest PCI Express generation
4.0
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
2
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Battery type
CR2032
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Other features
Weight
1.1 kg
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
