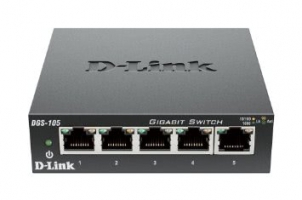

DLINK 5 PORTNO Gigabit STIKALO (DGS-105)
5 portno unmaged Gbit stikalo v metalnem ohišju
5 x 10/100/1000 Mb/s portov
avtomatska prepoznava kabla, half / full duplex
metalno namizno ohišje
garancija: 24 mesecev
Naša cena:
31,78 €
Redna cena:
39,24 €
Spletna cena:
31,78 €
Vaš prihranek:
Popust 19,00% (7,46 €)
Garancija:
1 leto
Dobavljivost:
Dobava 1-2 dni
EAN:
790069368226
Naša koda:
MRZDL924
Splošni opis:
5 portno unmaged Gbit stikalo v metalnem ohišju
5 x 10/100/1000 Mb/s portov
avtomatska prepoznava kabla, half / full duplex
metalno namizno ohišje
garancija: 24 mesecev
Tehnične lastnosti:
Technical details
Pallet height (sea)
2.04 m
Shipping (inner) case width
23 cm
Pallet gross weight (sea)
439.8 kg
Shipping (inner) case length
33.5 cm
Products per shipping (inner) case
10 pc(s)
Master (outer) cases per pallet (sea)
75 pc(s)
Products per pallet (air)
750 pc(s)
Pallet height (air)
2.04 m
Pallet gross width
110 cm
Shipping (inner) case net weight
5 kg
Master (outer) cases per pallet (air)
75 pc(s)
Pallet gross weight (air)
439.8 kg
Pallet gross length
120 cm
Shipping (inner) case height
36.6 cm
Shipping (inner) case gross weight
5.53 kg
Products per pallet (sea)
750 pc(s)
Design
Product colour
Black
Rack mounting
No
Housing material
Metal
Power
Input voltage
5 V
Input current
1 A
Power consumption (typical)
2.1 W
Security
MAC address filtering
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Management features
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Unmanaged
Weight & dimensions
Weight
267 g
Width
100 mm
Depth
98 mm
Height
28 mm
Network
Networking standards
IEEE 802.3az
,
IEEE 802.3
,
IEEE 802.3ab
,
IEEE 802.1p
,
IEEE 802.3u
,
IEEE 802.3x
Auto MDI/MDI-X
Yes
Copper ethernet cabling technology
100BASE-TX
,
1000BASE-T
,
10BASE-T
Flow control support
Yes
Full duplex
Yes
Performance
Mean time between failures (MTBF)
1688338 h
Packaging data
Package weight
450 g
Package width
170 mm
Package depth
220 mm
Package height
62 mm
Ports & interfaces
Power connector
DC-in jack
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Other features
Dimensions (WxDxH)
100 x 98 x 28 mm
Connectivity technology
Wired
Data transfer rate
2000 Mbit/s
Logistics data
Harmonized System (HS) code
85176990
Data transmission
Supported data transfer rates
10/100/1000 Mbps
Store-and-forward
Yes
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Maximum data transfer rate
1 Gbit/s
Jumbo frames support
Yes
Packet buffer memory
0.128 MB
