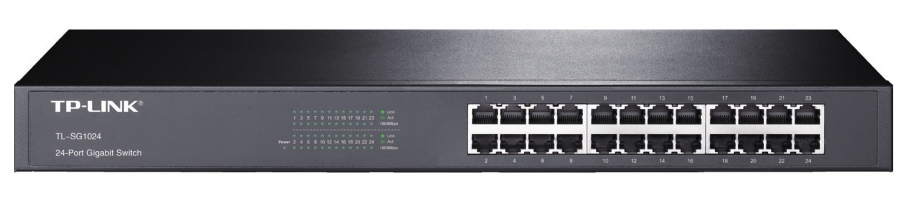

TP-Link TL-SG1024 Rackmount Gigabit switch, 24x RJ-45 (TL-SG1024)
TP-Link TL-SG1024 Rackmount Gigabit switch, 24x RJ-45 (TL-SG1024)
Naša cena:
90,85 €
Že od 16.66 EUR
Vaš mesečni obrok

ali

x
275,91 €
Redna cena:
112,17 €
Spletna cena:
90,85 €
Vaš prihranek:
Popust 19,00% (21,32 €)
Garancija:
Najmanj 1 leto, glej opis
Dobavljivost:
Dobava 3-10 dni
EAN:
x6935364020101
Naša koda:
MRZTK978
Splošni opis:
Tehnične lastnosti:
Design
Rack mounting
Yes
LED indicators
Yes
Product colour
Black
Form factor
1U
Power
Power supply included
Yes
AC input voltage
100 - 240 V
Power consumption (max)
13.62 W
AC input frequency
50 - 60 Hz
Power source
AC
Operational conditions
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
,
32 - 104 °F
Heat dissipation
46.44 BTU/h
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Network
Copper ethernet cabling technology
1000BASE-T
,
100BASE-TX
,
10BASE-T
10G support
No
Auto-negotiation
Yes
Networking standards
IEEE 802.3x
,
IEEE 802.3ab
,
IEEE 802.3u
,
IEEE 802.3i
Full duplex
Yes
Auto MDI/MDI-X
Yes
Flow control support
Yes
Half duplex
Yes
Packaging data
Package height
80 mm
User guide
Yes
Rack mount kit
Yes
Package depth
528 mm
Package width
250 mm
Cables included
AC
Package weight
2.13 kg
Protocols
Supported network protocols
CSMA/CD, TCP/IP
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Gigabit Ethernet (copper) ports quantity
24
Other features
Bandwidth
48 Gbit/s
Connectivity technology
Wired
Connectivity LEDs
Y
Dimensions (W x D x H) (imperial)
439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")
Data transmission
Supported data transfer rates
10/100/1000 Mbps
Forwarding rate
35.7 Mpps
Jumbo frames support
Yes
Maximum data transfer rate
1 Gbit/s
Jumbo frames
10000
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Store-and-forward
Yes
Priročniki:

Installation Guide

Rackmount Switch(EU2-12Languages)_ Installation Guide

Unmanaged Rackmount Switches(EU1_13Languages)_Quick Installation Guide

Switch Overview of Regulatory Compliance(UN)

Wall Mountable Switches_Wall Mounting Guide

Unmanaged/Easy Smart Rackmountable Switch_Installation Guide

Product Brochure
