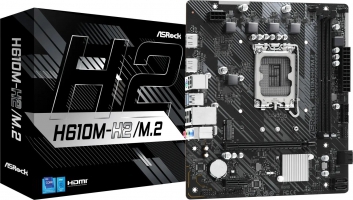

ASRock H610M-H2/M.2 LGA1700 DDR4 mATX (90-MXBP70-A0UAYZ)
H610M-H2/M.2
Naša cena:
58,62 €
Že od 10.87 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
72,37 €
Spletna cena:
58,62 €
Vaš prihranek:
Popust 19,00% (13,75 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4710483946929
Naša koda:
MBOAB380
Splošni opis:
ASRock H610M-H2/M.2 LGA1700 DDR4 mATX (90-MXBP70-A0UAYZ)
Tehnične lastnosti:
Processor
Compatible processor series
Intel Core i9 14th Gen
,
Intel Core i9 13th Gen
,
Intel Core i7 12th Gen
,
Intel Core i5 14th Gen
,
Intel Core i3 12th Gen
,
Intel Core i5 12th Gen
,
Intel Core i7 14th Gen
,
Intel Core i7 13th Gen
,
Intel Core i3 13th Gen
,
Intel Core i3 14th Gen
,
Intel Core i5 13th Gen
,
Intel Core i9 12th Gen
Processor socket
LGA 1700
Processor manufacturer
Intel
Graphics
HDCP
Yes
Features
Product colour
Multicolour
Audio chip
Realtek ALC897
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
Windows operating systems supported
Windows 11 x64
,
Windows 10 x64
Audio output channels
7.1 channels
Component for
PC
Memory
Memory slots type
DIMM
Number of memory slots
2
Supported memory clock speed (max)
3200 MHz
Supported memory types
DDR4-SDRAM
ECC сompatibility
ECC & Non-ECC
Unbuffered memory
Yes
Memory channels
Dual-channel
Maximum internal memory
64 GB
Weight & dimensions
Width
220 mm
Depth
193 mm
Network
Wi-Fi
No
Ethernet interface type
Fast Ethernet
,
Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Realtek RTL8111H
Internal I/O
12V power connector
Yes
Number of SATA III connectors
4
ATX Power connector (24-pin)
Yes
USB 2.0 connectors
1
Chassis intrusion connector
Yes
CPU fan connector
Yes
TPM connector
Yes
EPS power connector (8-pin)
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Rear panel I/O ports
Line-in
Yes
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
HDMI ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
1
PCI Express x1 (Gen 3.x) slots
1
Safety warning
Warnings
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
,
Before starting any maintenance or installation, disconnect the product from the power supply.
,
Avoid direct contact with electronics to prevent electrostatic damage.
