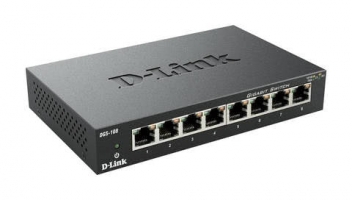

DLINK 8 PORTNO Gigabit STIKALO (DGS-108)
8 portno unmaged Gbit stikalo v metalnem ohišju
8 x 10/100/1000 Mb/s portov
avtomatska prepoznava kabla, half / full duplex
metalno namizno ohišje
garancija: 24 mesecev
Naša cena:
44,49 €
Redna cena:
54,92 €
Spletna cena:
44,49 €
Vaš prihranek:
Popust 19,00% (10,43 €)
Garancija:
1 leto
Dobavljivost:
Dobava 1-2 dni
EAN:
790069368240
Naša koda:
MRZDL923
Splošni opis:
8 portno unmaged Gbit stikalo v metalnem ohišju
8 x 10/100/1000 Mb/s portov
avtomatska prepoznava kabla, half / full duplex
metalno namizno ohišje
garancija: 24 mesecev
Tehnične lastnosti:
Technical details
Pallet gross weight (air)
398.9 kg
Shipping (inner) case net weight
7.1 kg
Shipping (inner) case length
37 cm
Products per shipping (inner) case
10 pc(s)
Shipping (inner) case height
44.3 cm
Shipping (inner) case gross weight
7.79 kg
Master (outer) cases per pallet (air)
48 pc(s)
Shipping (inner) case width
26 cm
Pallet height (air)
196.7 cm
Products per pallet (sea)
480 pc(s)
Master (outer) cases per pallet (sea)
48 pc(s)
Products per pallet (air)
480 pc(s)
Pallet height (sea)
196.7 cm
Pallet gross weight (sea)
398.9 kg
Pallet gross length
110 cm
Pallet gross width
120 cm
Design
Housing material
Metal
LED indicators
Power
,
Link
Rack mounting
No
Product colour
Black
Power
Input voltage
5 V
Input current
1 A
Power source
DC
Power consumption (typical)
2.8 W
Security
IGMP snooping
Yes
MAC address filtering
Yes
Operational conditions
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Management features
Switch layer
L2
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Weight & dimensions
Height
22.4 mm
Depth
85 mm
Weight
270 g
Width
138.7 mm
Network
Auto-sensing
Yes
10G support
Yes
Flow control support
Yes
MAC address auto-learning supported
Yes
Networking standards
IEEE 802.3x
,
IEEE 802.3
,
IEEE 802.3ab
,
IEEE 802.1p
,
IEEE 802.3u
,
IEEE 802.3az
Copper ethernet cabling technology
10BASE-T
,
1000BASE-T
,
100BASE-TX
Auto MDI/MDI-X
Yes
Full duplex
Yes
Performance
Mean time between failures (MTBF)
1467882 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Logistics data
Harmonized System (HS) code
85176990
Data transmission
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffer memory
0.192 MB
MAC address table
4000 entries
Store-and-forward
Yes
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Supported data transfer rates
10/100/1000 Mbps
Jumbo frames support
Yes
Switching capacity
16 Gbit/s
Multicast features
Multicast support
Yes
Safety warning
Warnings
Ensure the unit is adequately ventilated during operation.
,
The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
,
Do not open the case or try to repair it yourself.
